11KW Main Power C Purlins Roll Forming Machine With Hydraulic / Manual Decoiler

Name: 11KW Main Power C Purlins Roll Forming Machine With Hydraulic Manual Decoiler
Brand: Sussman
Price: 1 USD

China 11KW Main Power C Purlins Roll Forming Machine With Hydraulic / Manual Decoiler wholesale

Brand Name : Sussman

Model Number : SM-CP

Certification : SGS.CE.ISO

Place of Origin : China

MOQ : 1 set

Price : negotiable

Payment Terms : L/C, T/T

Supply Ability : 10 sets per month

Delivery Time : 75 days

Packaging Details : film and steel

Material thickness : 1.0-2.0mm steel coil

Roller Stations : about 13 stations

Main Power : 11KW

Power supplier : 380V, 50HZ,3 phase

Weight : 4 Tons

Forming Speed : 10-12m/min

Machine size : 7300*800*1000mm

Cutting type : Hydraulic Cutting

Contact Now

11KW Main Power C Purlins Roll Forming Machine With Hydraulic / Manual Decoiler

Specification

1. Save Cost

2. Save space

3. Low loss, easy operate

4. High Efficency

5.European quality, work smoothly

C Purlin Technical Parameter

	Items	Specifications
Material of coil	Material Thickness	1.0-2.0 mm steel coil
	Material	Galvanized Steel Coils, Hot Rolled Coils,Cold Rolled Coils
De-coiler	Weight	3 tons passive
Forming system	Rolling Speed	10-12m/min
	Roller Stations	About 13 stations forming
	Roller Material	Gcr15 Steel with quenching
	Shaft Material	45# Steel Diameter 75mm shaft
	Maim Motor Power	11 kw
	Hydraulic cutting Power	5.5 kw
Cutting system	Material Of Cutting	CR12 with quench treatment
	Hardness	HRC58-62
	Tolerance	+-1.5mm
	Cutting blade	1 set of cutting blade
Electrical control system	Electric Source	380V, 50HZ, 3phase
Electrical control system	Control System	PLC with touch screen Japanese Panasonic and Yaskawa Brand
	Weight	About 4 tons
	Way Of Drive	1 inch single chain
	Size of machine	Length 7300mm* Width 800mm* Height 1000mm

Main Components

Name	Quantity
Feeding with guide	1 set
Main roll forming machine	1 set
3 ton passive de-coiler	1 set
Control box	1 unit
Hydraulic station and punching	1 unit
Out tables	2 units

Profile and Drawing Of Product

11KW Main Power C Purlins Roll Forming Machine With Hydraulic / Manual Decoiler

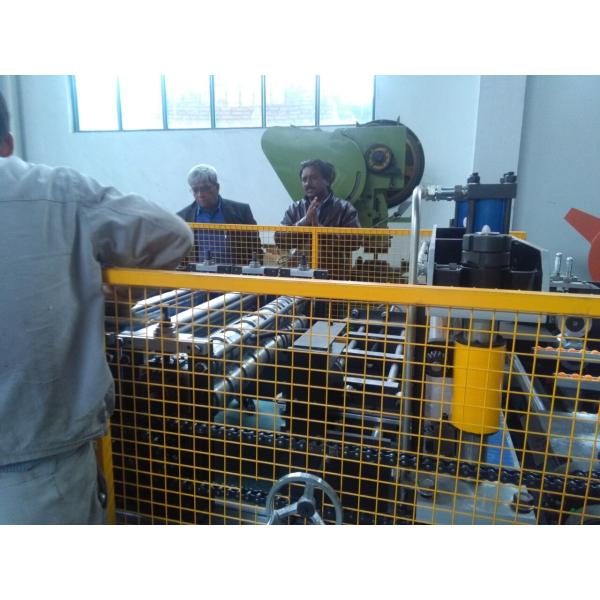

Customer Visiting

Loading

All rollers will be brushed unti-rusty oil, and packed with waterproof plastic film.
Control box: be packed with thick cardboard, and outer side thick waterproof plastic film.
Delivery time: 75 days after deposit

Our Service

Warranty: 12 months,lifetime service
During the warranty period, it covers all spare parts of machines, if you find some spare parts were damaged, those new spare parts will be supplied free by us, but normal wear and tear excepted. And the freight should be bore equally by both parties.We could provide technical guiding, production, installation, debugging and maintenance service to all customers. After the end of the warranty period, it’s not free. We will provide the technical support for the whole life of the equipment.
