Galvanzied Steel 1.0-1.5mm Upright Rack Cross Support Hat Profile Center Shelf Reinforce Roll Forming Machine

Brand Name : Sussman

Model Number : SM-WA

Certification : SGS.CE.ISO

Place of Origin : China

MOQ : 1 set

Price : USD20800-USD25800 Per set

Payment Terms : L/C, T/T

Supply Ability : 5 sets per month

Delivery Time : 60days

Packaging Details : Film and Steel

Type : Pallet Rack Cross Support steel profile Roll Forming Machine

material thickness : 1.0-1.5mm galvanized steel

Roller material : Cr12 Steel with quenching

Dirve system : Chain drive

Contact Now

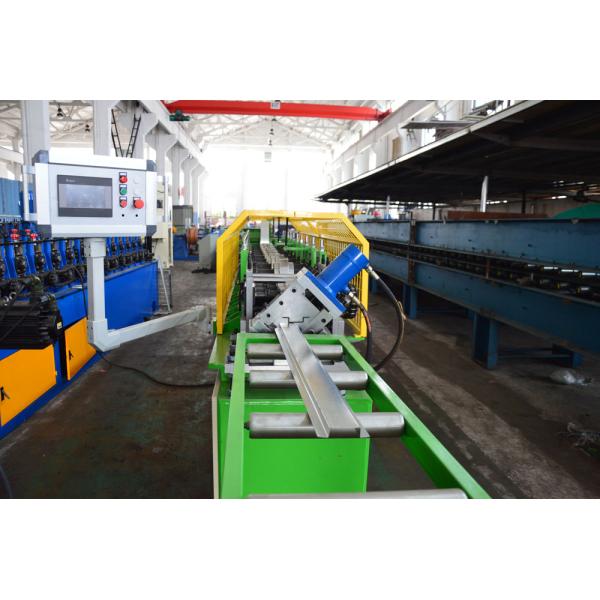

Galvanzied Steel 1.0-1.5mm Upright Rack Cross Support Hat Profile Center Shelf Reinforce Roll Forming Machine

Machine Technical Parameter

Items

Specifications

Material of coil

Material Thickness

0.5-1.0 mm

De-coiler

Weight

3 ton manual

Forming system

Rolling Speed

up to 15m/min

Roller Stations

About 13 stations forming

Roller Material

Gcr15 Steel with quenching

Shaft Material

45# Steel

Maim Motor Power

7.5 kw

Hydraulic cutting Power

4 kw

Cutting
system

Material Of Cutting

CR12 with quench treatment

Hardness

HRC58-62

Tolerance

+-1.5mm

Cutting blade

1 set of cutting blade

Electrical control system

Electric Source

380V, 50HZ

Control System

PLC with touch screen Japanese Panasonic and Yaskawa Brand

Weight

About 3.5 tons

Way Of Drive

1 inch single chain

Size of machine

Length 3100mm* Width 500mm* Height 700m



Main Components

Main Components
3 ton passive de-coiler 1 set
Feeding with guide 1 set
Main roll forming machine 1 set
PLC control system 1 unit
Hydraulic station 1 unit
Stop cutting device 1 unit
Safety cover 1 unit
Out table 2 units
Spare parts 1 package



Working Flow of Roll Forming Machine

Decoiler----Hydraulic punching to make the hole—Roll forming——Cutting—Products collecting
Galvanzied Steel 1.0-1.5mm Upright Rack Cross Support Hat Profile Center Shelf Reinforce Roll Forming Machine

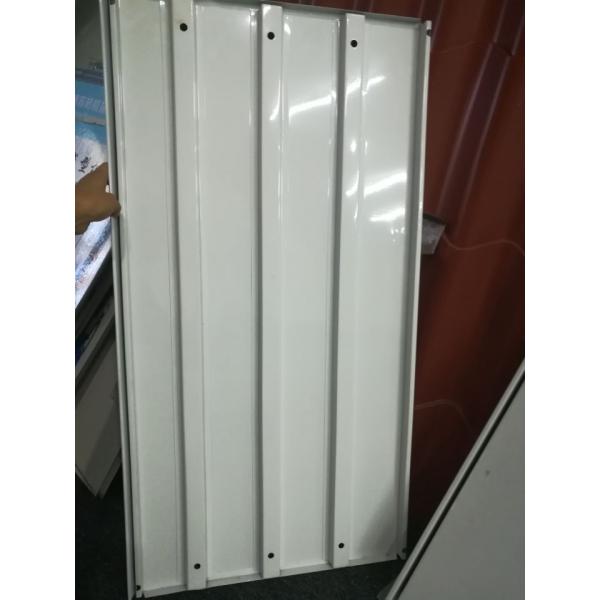

Application:

Top hat is used for pallet shelving, which are the most economical method for supporting full pallet loads stored in industrial selective pallet rack shelving.

Galvanzied Steel 1.0-1.5mm Upright Rack Cross Support Hat Profile Center Shelf Reinforce Roll Forming Machine

Galvanzied Steel 1.0-1.5mm Upright Rack Cross Support Hat Profile Center Shelf Reinforce Roll Forming Machine


Photo Gallery

Galvanzied Steel 1.0-1.5mm Upright Rack Cross Support Hat Profile Center Shelf Reinforce Roll Forming Machine
